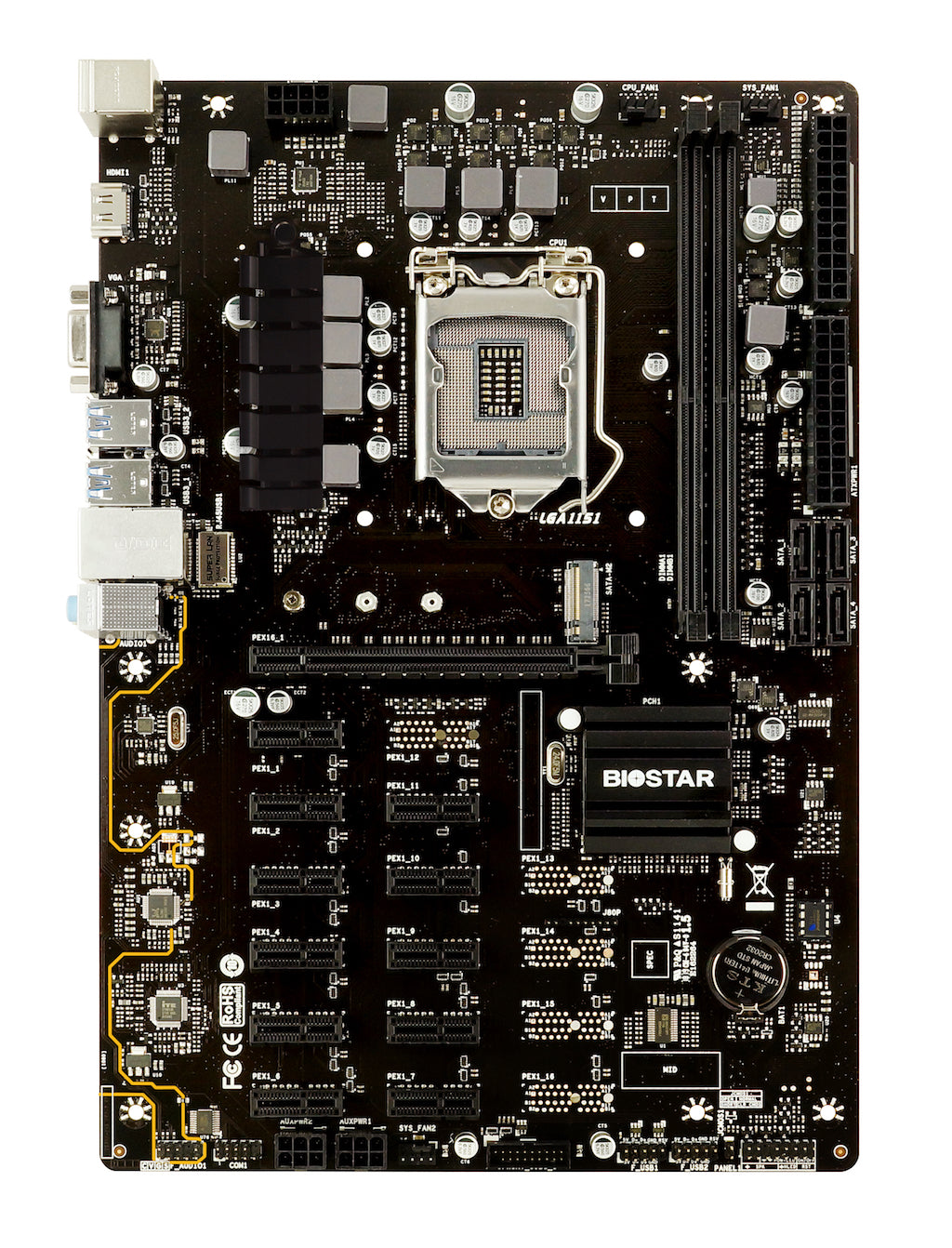

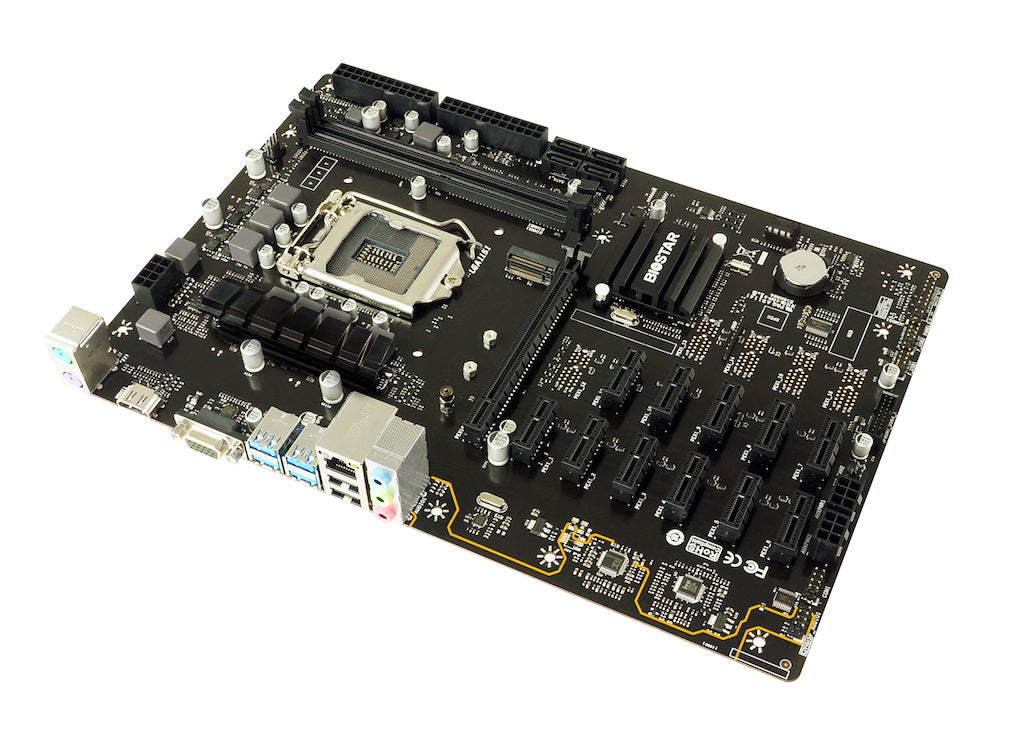

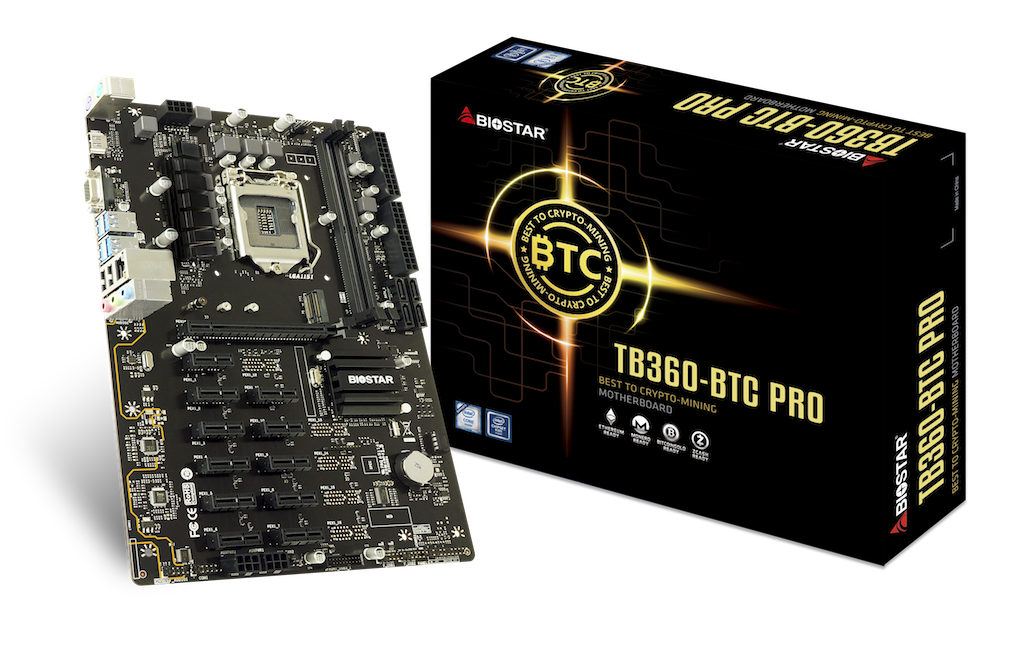

Biostar TB360-BTC PRO 2.0 (Repaired by Biostar No accessories)
These are motherboards that were repaired by Biostar. No accessories
We don't accept returns for this product and all RMA's must be placed with Biostar
We DO NOT ship these products outside the USA
These have the same manufacturer warranty as the new motherboards
|
Chipset |
Intel B360 |
| CPU SUPPORT | 9th Gen Intel® Core™ i9 LGA 1151 Processor 9th Gen Intel® Core™ i7 LGA 1151 Processor 9th Gen Intel® Core™ i5 LGA 1151 Processor 9th Gen Intel® Core™ i3 LGA 1151 Processor 8th Gen Intel® Core™ i7 LGA 1151 Processor 8th Gen Intel® Core™ i5 LGA 1151 Processor 8th Gen Intel® Core™ i3 LGA 1151 Processor 8th Gen Intel® Pentium® LGA 1151 Processor 8th Gen Intel® Celeron® LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt 8th *Generation Intel® Core™ Processor Family only support 300-Series. |
| MEMORY | Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6GB/s) 1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller Support Super LAN Surge Protection |
| AUDIO CODEC | Realtek ALC887 8-Channel HD Audio |
| USB | 6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header) 6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot 11 x PCI-E 3.0 x1 Slots *Maximum VGA cards mining support are depending on VGA Driver or mining software. |

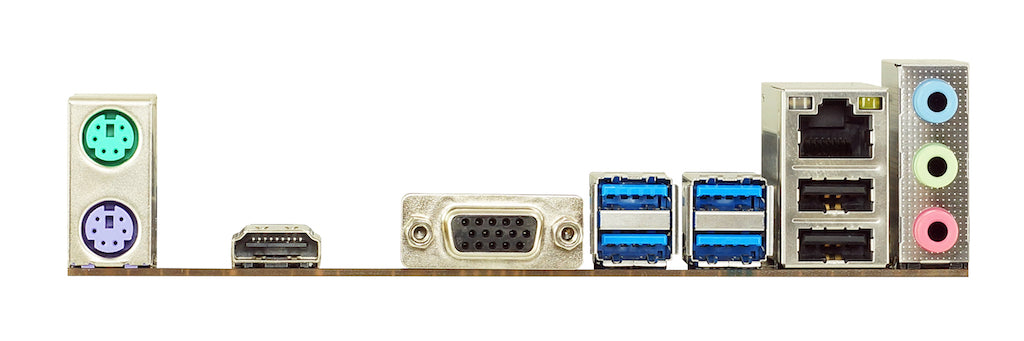

| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 3.1 Gen1 Ports 2 x USB 2.0 Ports 1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz 1 x LAN Port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 4 x SATA III Connectors (6Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 2 x System Fan Connector 1 x 8-Pin Power Connector 1 x 6-Pin Power Connector (12V_In for Motherboard) 1 x 6-Pin Power Connector (12V_Out for VGA Card) 2 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit) Linux ethOS Mining OS ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| FEATURES | PCI-E Slot Detection BIOS Boot Screen |
| WARRANTY |
1 Year Biostar Warranty |
