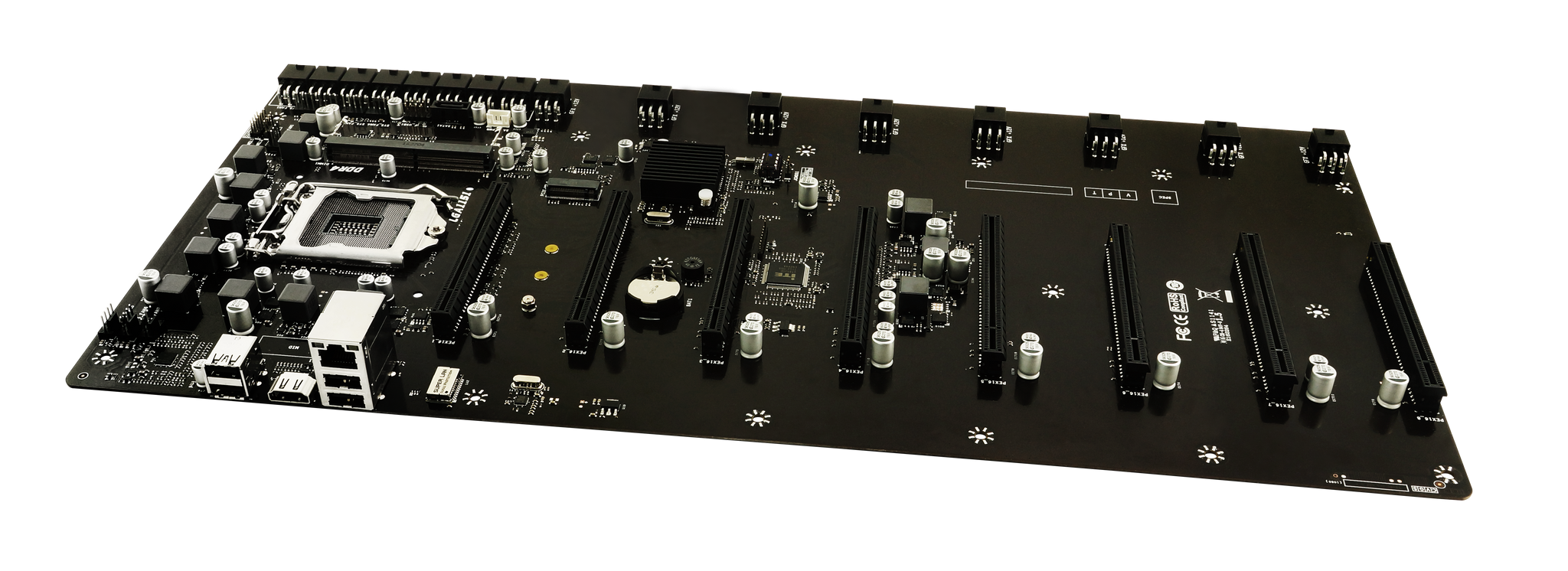

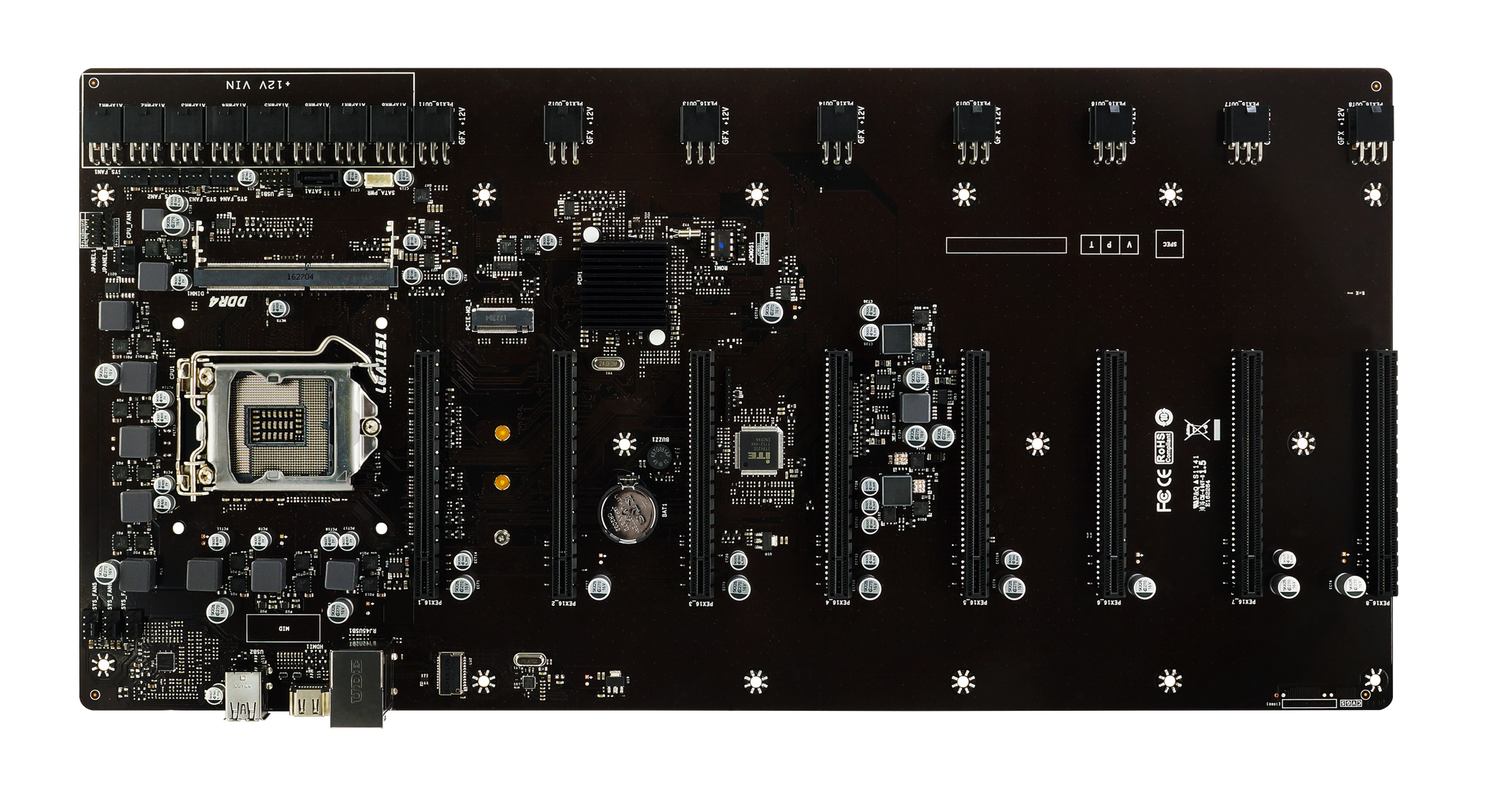

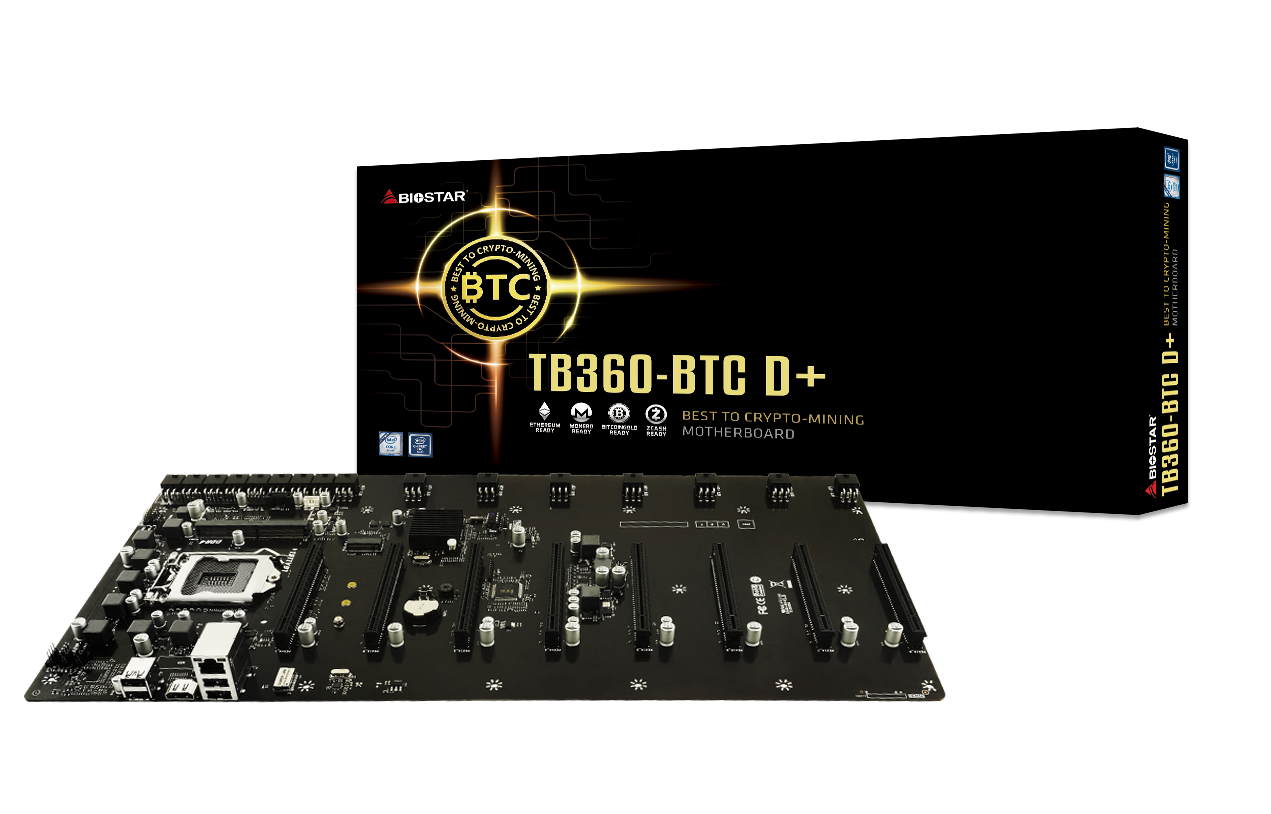

Biostar TB360-BTC D+ (Open Box)

These are customer returned units. All accessories may not be included. We test these to boot before shipment.

We don't accept returns for this product and all RMA's must be placed with Biostar

We DO NOT ship these products outside the USA

These have the same manufacturer warranty as the new motherboards

Chipset

Intel B360

CPU SUPPORT

8thand 9th Gen Intel Core i7 LGA 1151 Processor

8thand 9thGen Intel Core i5 LGA 1151 Processor

8thand 9th Gen Intel Core i3 LGA 1151 Processor

8thand 9thGen Intel Pentium LGA 1151 Processor

8th and 9thGen Intel Celeron LGA 1151 Processor

MEMORY

1 x DDR4 SO-DIMM-2133/2400/2666 Memory Slot (Max Supports up to 16GB Memory)

INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

STORAGE

1 x SATA III Connector (6Gb/s)

1 x M.2 (M Key) 16Gb/s Connector:SupportsPCIe and SATA SSD

LAN

Realtek RTL8111H -10/100/1000Mb/s Controller

USB

6 x USB 2.0 Ports(4 on rear I/Os and 2 via internal headers)

EXPANSION SLOT

8x PCIex16 Slots

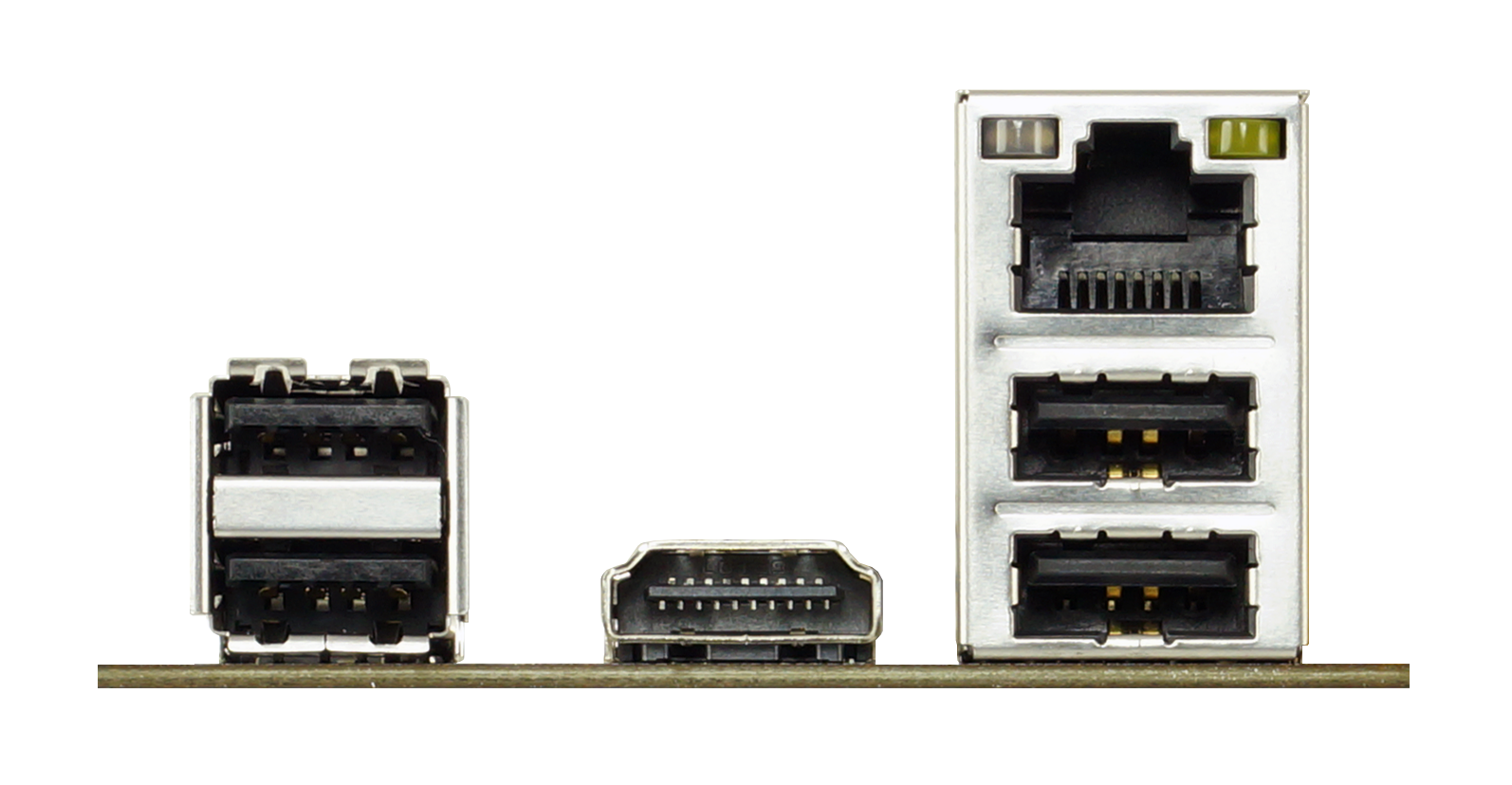

REAR I/O

4 x USB 2.0 Ports

1 x HDMI Connector

1 x LAN PortI

NTERNAL I/O

1 x USB 2.0 Header(each header supports 2 USB 2.0 ports)

1 x SATA III Connector (6Gb/s)

1 x SATA Power Connector(for rear USB power enhancement)

1 x Front Panel Header

1 x CPU Fan Connector

7 x System Fan Connectors

1 x Clear CMOS Header

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

System Voltage Monitoring

DIMENSION

Special Form Factor Dimension: 48.5cm x 23.5cm (W x L)

OS SUPPORT

Supports Windows 10(x64)

*BIOSTAR reserves the right to add or remove support for any OS with or without notice.

ACCESSORIES

2 x SATA Cables

1 x I/O Shield

1 x DVD Driver

1 x User Manual

Warranty

1 Year Biostar warranty
