Bulk 10 Pack TB560-BTC PRO
Payment - Cryptocurrency or Bank Wire are the ONLY payments accepted for this bulk deal. Any other form of payment will be refunded.
Return Policy - Any defective motherboards will need to be RMA'ed to Biostar for a repair or replacement as all sales are final.
| Chipset | Intel B560 |
| CPU SUPPORT | Support for 11th/10th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package * Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR4 -1866/ 2133/ 2400/ 2666/2800/2933 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | -- Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports 4 x SATA III Connector (6Gb/s) 1 x M.2 (M Key) Socket: PCIE x 4 (Only 11th CPU) (M Key) Socket (M2_PCIEG4_64G_1) Supports PCIE Gen4 11th Generation Intel Core™ only Supports M.2 Type 2242/2260/2280 SSD module Supports PCI-E 4.0 x 4 (64Gb/s) Supports Intel Rapid Storage Technology and Intel Optane Technology |
| LAN | RTL8111E 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC897 8 Channel (2 Channel from Front Audio) |
| USB | 6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal header) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal header) |
| EXPANSION SLOT | 11 x PCIe 3.0 x1 Slot 1 x PCIe 4.0 x16 Slot (x16 mode) (Supports PCIE Gen4 11th Generation Intel Core™ only) |

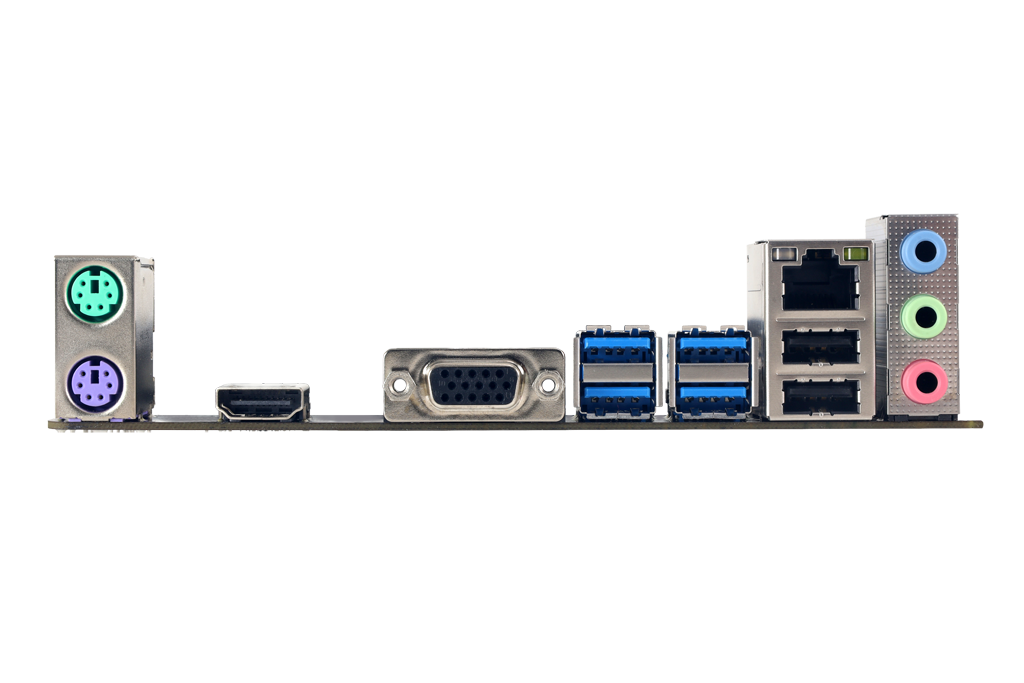

| REAR I/O | 1 x PS/2 Keyboard/Mouse Port 1 x HDMI Port 1 x VGA Port 4 x USB 3.2 (Gen1) Port 2 x USB 2.0 Port 1 x LAN port 3 x Audio Jack |
| INTERNAL I/O | 4 x SATA III Connector (6Gb/s) 2 x USB 2.0 Header (each header supports 4 USB 2.0 ports) 1 x 8-Pin Power Connector 2 x 24-Pin Power Connector 1 x CPU Fan Connector 2 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | ATX Form Factor Dimension: 30.48cm x 21.0cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| FEATURES | PCI-E Slot Detection BIOS Boot Screen |
